Helical and Planar Continuum Robot Shapes by Structural Tube Modifications and Backbone Length Control

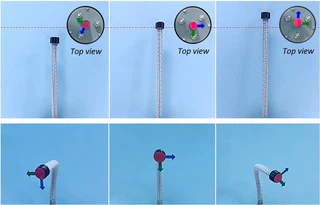

Navigating tortuous anatomical pathways, such as the aortic arch, requires continuum robots capable of complex three-dimensional deformations. Existing designs are often limited to specific curve families, and extending their shape capabilities usually increases mechanical complexity and system size. In this paper, we present a novel hybrid continuum robot that combines a multi-backbone structure with a flexible notched tube. Control rods enable bending, compression, and extension, while the tube’s structural modifications induce torsion along the backbone. This allows the robot to achieve both planar and helical shapes in a compact form factor. Simulations and experiments were performed on a prototype with an outer diameter of 7 mm and length of 107.4 mm, achieving a mean backbone shape and tip position errors of 1.25 mm and 1.63 mm, respectively, in EM-tracking experiments. A smaller prototype was used to demonstrate the feasibility of navigating through an aortic arch phantom, highlighting the potential for miniaturized implementations in highly constrained environments.
